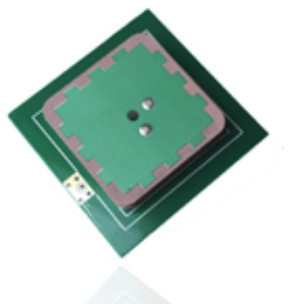

Series： Special Single Antenna Modules
Application：geodetic surveying, road construction, ocean surveying, terminal container operations, combat exercises, border guards
Specifications
| Performance | |
| Frequency | BDS-B3 |
| Antenna Gain | 4dBi |
| Polarization | RHCP |
| Axial Ratio | ≤3DB |
| Front-to-Rear Ratio | >20DB |
| Impedance | 50Ω |
| Output VSWR | <2.0 |
| Elevation Angle | 360° |
| Structure | |
| Connector | SMA |
| Size | 50*50*6mm without connector |
| Working Environment | |
| Operating Temperature | -40℃-55℃ |
| Storage Temperature | -55℃-70℃ |
| Humidity | 95% will not condense |
