Single-hole Flanged Terminations

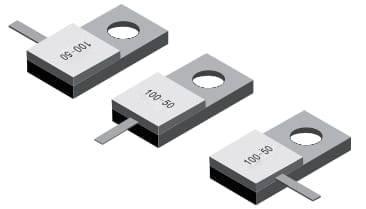

RIG2/RFG-RF Single-lead single-hole Flanged Terminations

General Specifications

Power: 5~100Watts
Frequency: DC~12GHz
Standard Resistance: 50 Ohm
Resistance Tolerance: ±1%、±2%、±5%(default)
Temperature Coefficient: ≤±300PPM/°C //≤±250PPM/°C
Temperature Range : -55°C~125°C/-55°C~150°C
Default Substrate Material: BeO
RoHS compliant
Standard:Q/20275660-7.2-2019
Q/20275660-7.20-2019 (It is formulated in accordance with GJB8263-2014)
We can provide the customized product according to the customer's requirements.

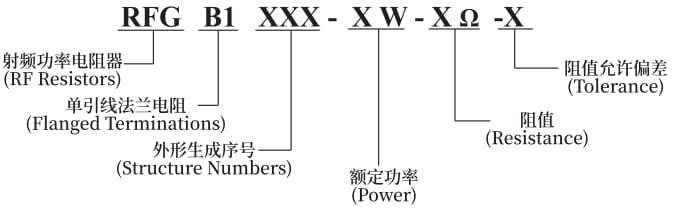

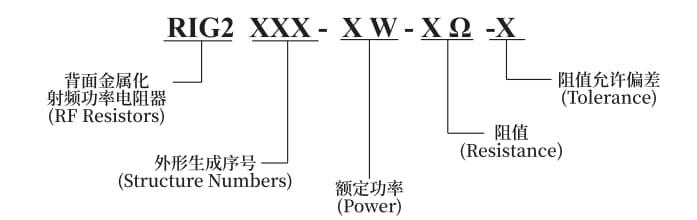

Order Information

Product Reference

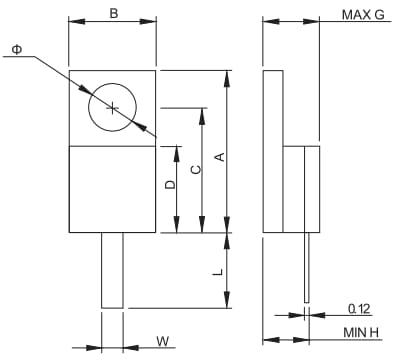

Oppsite lead

Power(W)	Frequency(GHz)	(VSWR≤)	Model	Dimensions(mm)
Power(W)	Frequency(GHz)	(VSWR≤)	Model	A±0.2	B±0.2	C±0.15	D	H(min)	G(max)	W±0.2	Φ
5	DC-6	1.2	RIG2-F	10	4	7.4	4	2.2	3.2	1	2.5
5	DC-6	1.2	RIG2-Fa	7.5	4	5.8	4	1.7	2.7	1	2.2
10	DC-3	1.2	RIG2-F	9	5	6.7	4	2.7	3.7	1	2.6
10	DC-12	1.3	RIG2-F1	7.7	5	5.2	2.5	2.4	3.4	1	3
20	DC-6	1.2	RIG2-F	9	4	6.5	4	2.2	3.2	1	2.2
30	DC-6	1.2	RIG2-F1	7.7	5	5.2	2.5	2.4	3.4	1	3
40	DC-6	1.2	RIG2-F1	12.7	6.5	9.6	6.4	2.7	3.7	1	3.5
50	DC-6	1.2	RIG2-F	13	6.4	10	6.4	2.7	3.7	1	3.2
60	DC-6	1.2	RIG2-F	13	6.4	10	6.4	2.7	3.7	1	3.2
60	DC-4	1.2	RIG2-F1	13	6.4	10	6.4	2	3	1	3.2
100	DC-4	1.2	RIG2-F	13	6.4	10	6.4	2.7	3.7	1	3.2
100	DC-4	1.2	RIG2-T10	11.5	9	8.6	6	2.2	3.2	1	3
100	DC-5	1.2	RIG2- T11	11.5	9	8.6	6	2.7	3.7	1	3

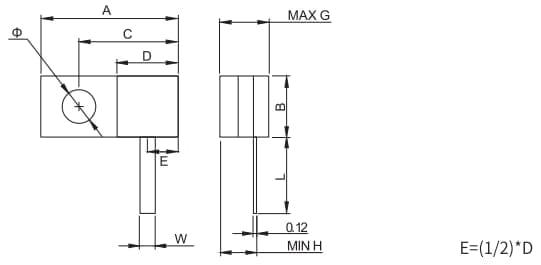

Leftward lead

Power(W)	Frequency(GHz)	(VSWR≤)	Model	Dimensions(mm)
Power(W)	Frequency(GHz)	(VSWR≤)	Model	A±0.2	B±0.2	C±0.15	D	H(min)	G(max)	W±0.2	Φ
5	DC-5	1.2	RIG2-4E	7.7	5	5.2	2.5	2.7	3.7	1	3
5	DC-6	1.2	RIG2-Da	9	4	6.5	4	2.2	3.2	1	2.2
10	DC-5	1.2	RIG2-4E	7.7	5	5.2	2.5	2.7	3.7	1	3
10	DC-6	1.2	RIG2-4E1	7.5	4	5.8	4	1.7	2.7	1	2.2
18	DC-5	1.2	RIG2-4E1	9	5	6.7	2.5	2.7	3.7	1	2.6
20	DC-5	1.2	RIG2-4E1	7.7	5	5.2	2.5	2.7	3.7	1	3
50	DC-6	1.2	RIG2-D	13	6.4	10	6.4	2.7	3.7	1	3.2
60	DC-6	1.2	RIG2-D	13	6.4	10	6.4	2.7	3.7	1	3.2
100	DC-4	1.2	RIG2-D	13	6.4	10	6.4	2.7	3.7	1	3.2
100	DC-4	1.2	RFGB1L02	13	6.4	10	6.4	2	3	1	3.2

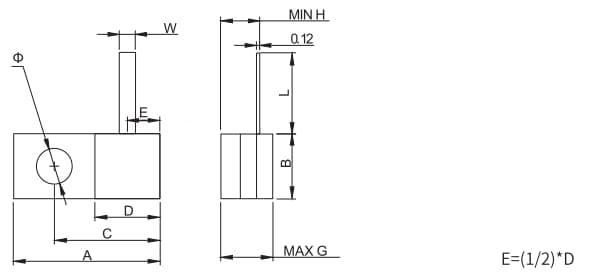

Rightward lead

Power(W)	Frequency(GHz)	(VSWR≤)	Model	Dimensions(mm)
Power(W)	Frequency(GHz)	(VSWR≤)	Model	A±0.2	B±0.2	C±0.15	D	H(min)	G(max)	W±0.2	Φ
10	DC-5	1.2	RIG2-4E2	7.7	5	5.2	2.5	2.7	3.7	1	3
10	DC-6	1.2	RIG2-4E4	7.5	4	5.8	4	1.7	2.7	1	2.2
20	DC-5	1.2	RIG2-4E2	7.7	5	5.2	2.5	2	3	1	3
50	DC-6	1.2	RIG2-D1	13	6.4	10	6.4	2.7	3.7	1	3.2
60	DC-6	1.2	RIG2-D1	13	6.4	10	6.4	2.7	3.7	1	3.2
100	DC-4	1.2	RIG2-D1	13	6.4	10	6.4	2.7	3.7	1	3.2
60	DC-9	1.2	RFGB1R01	13	6.4	10	6.4	2.7	3.7	1	3.2
100	DC-4	1.2	RFGB1R02	13	6.4	10	6.4	2	3	1	3.2
