Glass Glaze Resistors

RI21-Glass Glaze Resistors

General Specifications

Power: 0.125~0.5Watts
Standard Resistance: 100 Ohm
Resistance Tolerance: ±3%、±5%、±10%(default)
Temperature Range : -55°C~125°C
Default Substrate Material: RI21 , Al₂O₃;

RI21-T, BeO.

RoHS compliant
We can provide the customized product according to the customer's requirements.

Temperature Coefficient

Model

Temperature Range

-55°C~20°C

20°C~125°C

RI21

≤±500PPM/°C

≤±300PPM/°C

RI21-T

≤±300PPM/°C

≤±300PPM/°C

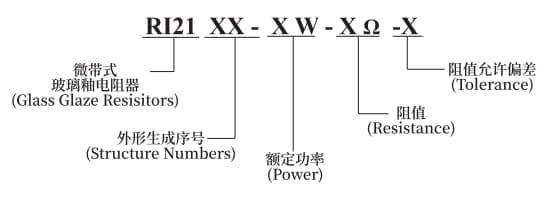

Order Information

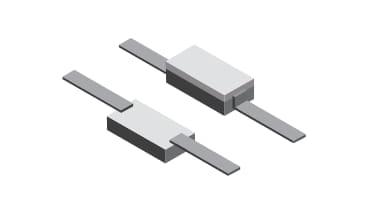

Product Reference

61 .jpg

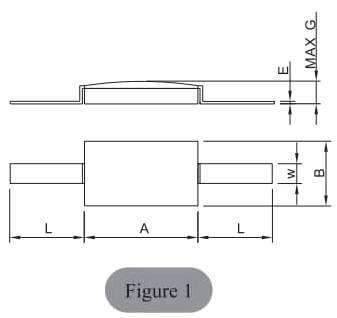

Power(W)	Model	Figure	Dimensions(mm)
Power(W)	Model	Figure	A±0.2	B±0.2	E	H(min)	G(max)	W±0.15	L±0.5
0.125W	RI21	1	3	1.2	0.05	N/A	1	0.7	4.5
0.25W		1	4.5	1.5	0.05	N/A	1	1.1	5
0.5W		1	6	2	0.12	N/A	1.3	1.2	5

Power(W)	Model	Figure	Dimensions(mm)
Power(W)	Model	Figure	A±0.2	B±0.2	E	H(min)	G(max)	W±0.15	L±0.5
0.5W	RI21-T1	1	2	1	0.12	N/A	1.2	0.7	2
0.5W	RI21-T2	1	2	1	0.12	N/A	1.2	0.7	1.5

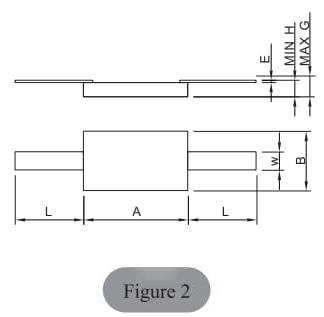

0.5W	RI21-T3	2	2	1	0.12	0.5	0.8	0.7	1.5
