Features

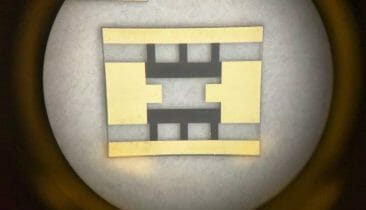

• Thin film resistor network attenuator chip

• Metallization type: TaN/TiW/Ni/Au & 4 micron Au thickness Min.

• Working frequency up to 67 GHz，Attenuation range from 1dB to 40dB

Applications

RF MicroWave MillimeterWave Programmable Step Attenuator

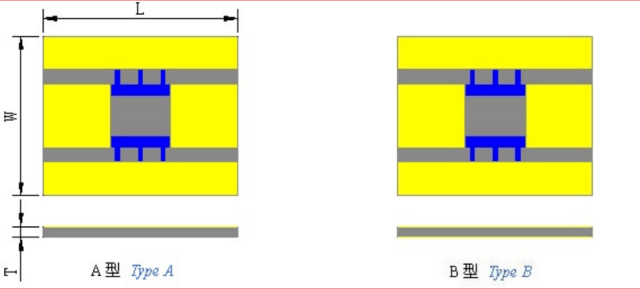

Figuration

Selection Guide

• Substrate material: 99.6% Al2O3, 95% AlN, BeO.

• Substrate thickness range: 0.127mm, 0.254mm、0.381mm、0.508mm、0.635mm、1mm & other custom required size

• Attenuation range: 1dB to 40dB

• Attenuation Accuracy : 1dB to 20dB: +/- 0.5dB 21dB to 40dB: +/- 1.0dB

• Fre. Range : Dc to 12Ghz; Dc to 18GHz; Dc to 26GHz; Dc to 40GHz; Dc to 50GHz; Dc to 67GHz

• VSWR : DC to 12Ghz: 1.20Max; 12 to 18Ghz :1.25 Max; 18 to 26GHz: 1.35 Max; 26 to 40GHz 1.50Max

• Power rating: Max 2 Watts

Part Number Code

Part	Signification	Detail
①	Up Frep.	18GHz
②	Programmable Attenuator Chip	PAC Abbreviation
③	Attenuation value	1dB to 40dB
④	Type Code	Type A or Type B
⑤	Size Code	Length, Width & Thickness
⑥	Substrate Code	Al2O3, AlN, BeO
